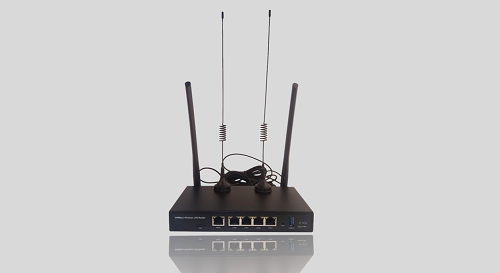

4G Route 4GE(LAN)+1GE(WAN)-Single

Model:LY1000-4GR-1W4L-S
Chipset:MT7621A+MT7603E+RTL8370N
4G LTE:150Mbps
Cable:4 * GE LAN, 1 * GE WAN
Wireless:300Mbps(2.4G≦18dBm)
Description Review
Description
4G Route   LY1000-4GR-1W4L
LY1000-4GR-1W4L is a 4G Route product developed by Lycom group. It is a wireless router product integrating 4G network, virtual private network and other technologies.    The device relies on 4G wireless wide area network dual network backup, as well as Wi-Fi 2.4G wireless LAN and other technologies to provide uninterrupted access to a variety of networks, with its comprehensive security and wireless services and other features, to provide users with high-speed and stable data transmission channels.
LY1000-4GR-1W4L products, provide 4G broadband dual network, Wi-Fi, provide 4GE LAN ports, suitable for small and medium-sized enterprises, stores, teahouse restaurants, villas and other scenarios.



Product Overview

Frequency Range:
4G:LTE-FDD:B1/B3/B5/B7/B8/B20,LTE-TDD:B38/B39/B40/B41
3G:WCDMA:B1/B5/B8,TD-SCDMA:B34/B39,CDMA2000/EVDO:BC0,
GNSS:GLONASS/GPS/BeiDou/Compas
2G:1800MHz/900MHz/850MHz

Signal Rate:
LTE FDD DL/UL: 150Mbps/50Mbps
DC-HSPA+: 42Mbps/5.76Mbps
UMTS: 384kbps/384kbps
TD-SCDMA: 2.2Mbps/2.8Mbps
EVDO: 3.1Mbps/1.8Mbps
EDGE: 236.8kbps/236.8kbps
GPRS: 85.6kpbs/85.6kpbs


4G LTE:150Mbps
Wireless:300Mbps(2.4G≦18dBm)
Cable:4 * GE LAN, 1 * GE WAN
Size:190mm × 100mm × 28mm
Power 12V

Product Overview
Items LY1000-4GR-1W4L
Connector Type 1*10/100/1000Mbps WAN Port(RJ45)
4*10/100/1000Mbps LAN Port(RJ45)
1*USB 2.0 Host Port
1*NANO USIM card Port
1*DC power supply Port
Wireless standards 802.11 b/g/n
Network Media 10BASE-T: Cat 3,4,5 UTP(≤100 meter)
100BASE-T: Cat 5 UTP(≤100 meter)
1000BASE-TX: Cat5 or more UTP (≤100 meter)
CPU Frequency 880MHz
RAM capacity 256MBytesDDR3
ROM capacity 32MBytes SPI Flash
Front Reset
Data encryption WPA-PSK/WPA2-PSKWPA/WPA2
WIFI frequency range 2.4~2.4835GHz
WiFi antenna Built-in high-performance Wi-Fi antenna
Working Environment Operating Temperature: 0 ~ 40;
Storage Temperature: -40 ~ 70
Operating Humidity: Max 90%, non-condensing
Storage Humidity: Max 90%, non-condensing
Working Height: Max to 10,000 feet (3,000 meters)
Storage Height: Max to 10,000 feet (3,000 meters)
4G module Frequency Range
4G:LTE-FDD:B1/B3/B5/B7/B8/B20,LTE-TDD:B38/B39/B40/B41
3G:WCDMA:B1/B5/B8,TD-SCDMA:B34/B39,CDMA2000/EVDO:BC0,
GNSS:GLONASS/GPS/BeiDou/Compas
2G:1800MHz/900MHz/850MHz
Signal Rate
LTE FDD DL/UL: 150Mbps/50Mbps
DC-HSPA+: 42Mbps/5.76Mbps
UMTS: 384kbps/384kbps
TD-SCDMA: 2.2Mbps/2.8Mbps
EVDO: 3.1Mbps/1.8Mbps
EDGE: 236.8kbps/236.8kbps
GPRS: 85.6kpbs/85.6kpbs
MTBF 100,000 hours
Per Device Power,SYS
Per Port Link/Activity
Power Supply 12V/2A external power supply
Outline dimensions 190mm*100mm*28mm (W*D*H)


Product Features


Attributes LY1000-4GR-1W4L
Work mode NAT/ Bridge/ Router mode
Setup wizard
SMS send and receive
Network Settings WAN connection types supported: PPPoEDHCPStatic IPPPtPL2TP
APN
IPv6
DHCP
Visitors to the network
Parental control
System Tools Traffic statistics
Configure backup/upgrade
SNTP
Restart/Reset
Security Settings Firewall
wireless Black and white list
WIFI Settings
Mesh configuration
WPS
network tool PING
Tracert
Tcpdump
Syslog Support the syslog function can send the log to the PC via LAN




Solution:





Ordering Information

Model Product Description
LY1000-4GR-1W4L 1*10/100/1000Mbps WAN Port(RJ45)
4*10/100/1000Mbps LAN Port(RJ45)
1*USB 2.0 Host Port
1*NANO USIM card Port
1*DC power supply Port
